| EXCLUSIVE RIP FENCE AND GUIDE
RAIL ASSEMBLY |
|
• |
New type fence assembly slides on the
front and rear guide rail smoothly by means of a plastic
pad. |
|
• |
Single clamp handle locks fence to front
guide rail. Parallelism to the sawblade is conveniently adjusted by screw. |
|
• |
Guide rail is calibrated in inches and
millimeters, and has a magnifier for good visibility. |
|
|
|
|
| SMOOTH DRIVE MECHANISM |
|
• |
Saw arbor is supported by one piece
housing |
|
• |
Saw arbor runs on three totally enclosed
life ball bearings. |
|
• |
Large, easily operated handwheels for blade tilting, raising
and lowering, with positive lock knobs. |
|
|
|
 |
| SPECIALLY DESIGN SLIDING TABLE ¡]OPTIONAL
ATTACHMENT¡^ |
|
• |
Sliding table rides on two ball bearings
and v-wheel which is guided by a precision ground steel bar
for smooth travel. |
|
• |
cross cut fence has a built in scale
together with stops for panel sizing. Also includes a length
stop. |
|
• |
Capacity¡G4feetx8feet¡]TC-10L, 12, 14, 16,
MBS-250, 300, 350, 400¡^ |
|
|
|
|

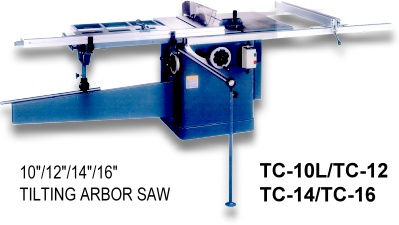

MODEL |
TC-10L |
TC-12 |
TC-14 |
TC-16 |
| Diameter saw blade |
10"
¡]250mm¡^ |
12"
¡]305mm¡^ |
14"
¡]350mm¡^ |
16"
¡]405mm¡^ |
| Max. depth of cut at 90¢X |
3"
¡]76mm¡^ |
4"
¡]101.6mm¡^ |
5"
¡]125mm¡^ |
5
1/2"
¡]140mm¡^ |
| Max. depth of cut at 45¢X |
2"
¡]50.8mm¡^ |
2 3/4"
¡]70mm¡^ |
3 1/2"
¡]88mm¡^ |
3 7/8"
¡]98mm¡^ |
| Arbor diameter |
5/8"
¡]1", 30mm Optional¡^ |
1"
¡]30mm Optional¡^ |
1"
¡]30mm Optional¡^ |
1"
¡]30mm Optional¡^ |
| Arbor speed |
4200rpm |
4000rpm |
3750rpm |
3750rpm |
| Table size |
36"x27"
¡]915x685mm¡^ |
48"x30"
¡]1220x762mm¡^ |
48"x38"
¡]1220x965mm¡^ |
48"x38"
¡]1220x965mm¡^ |
| Table height |
34 1/4"
¡]857mm¡^ |
34 1/4"
¡]857mm¡^ |
34 1/4"
¡]857mm¡^ |
34 1/4"
¡]857mm¡^ |
| Sliding table capacity |
3'x6'
¡]914x1828m/m¡^ |
4'x8'
¡]1220x2440m/m¡^ |
4'x8'
¡]1220x2440m/m¡^ |
4'x8'
¡]1220x2440m/m¡^ |
| Max. rip to right of blade |
50"
¡]1270mm¡^ |
50"
¡]1270mm¡^ |
50"
¡]1270mm¡^ |
50"
¡]1270mm¡^ |
| Motor |
3HP
¡]2HP¡A5HP Optional¡^ |
3HP
¡]5HP Optional¡^ |
5HP
¡]7 1/2HP Optional¡^ |
7.5HP
¡]10HP Optional¡^ |
| Net weight |
407lb
¡]185kgs¡^ |
572lb
¡]260kgs¡^ |
847lb
¡]385kgs¡^ |
869lb
¡]395kgs¡^ |
| Gross weight |
497lb
¡]225kgs¡^ |
704lb
¡]320kgs¡^ |
1012lb
¡]460kgs¡^ |
1034lb
¡]470kgs¡^ |
| Packing size |
29"x36"x42"h |
32"x36"x42"h |
37"x44"x42"h |
37"x44"x42"h |
|
|
