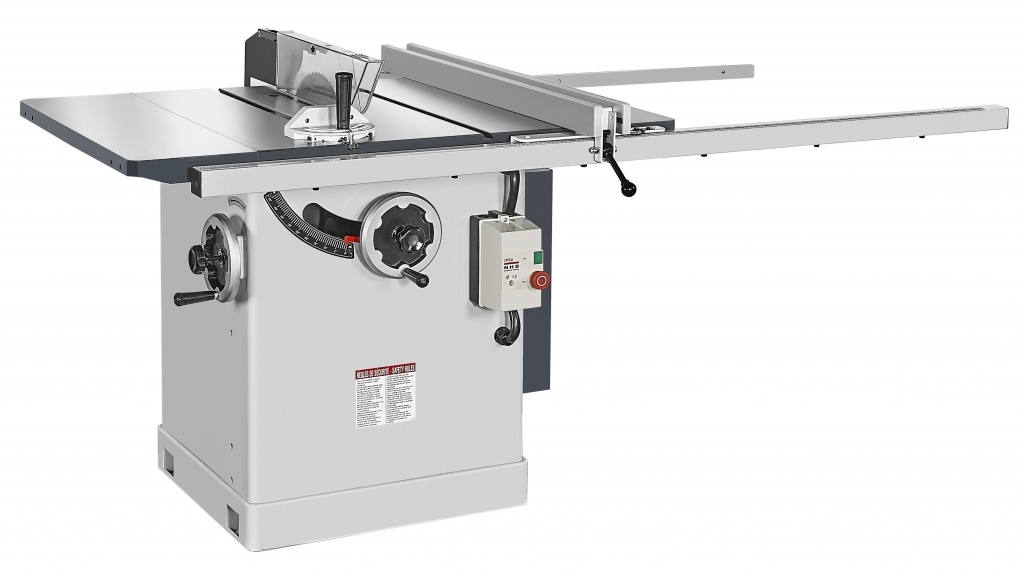

TC-10 (10”)

-Heavy duty cast iron table is precision ground for accuracy.

-Heavy duty 3HP TEFC motor.

-Overload protected magnetic switch.

-Anti-kickback safety guard.

-Ruggedly constructed machine frame provides maximum stability

-Choice of 4’ x 8’ Sliding table (optional)

-The machine can perform different sizes of groove and slot cuts when fitted with certain tools.

-Dado and Dado insert (optional)

-Equipped with precision fence for high accuracy cuts.

-Extras long guide rail

Trade Description

產品特色

SPECIALLY DESIGNED SLIDING TABLE SAW
FOR TC-10. 12. 14. 16.
•	Sliding table rides on two ball bearings and V roller which is guided by a precision grind steel bar for smooth travel.
•	Hold down clamp & Miter fence system is optional attachment for your request.
•	Cross cut fence has a built in scale to use in conjunction with the stops provided for panel sizing also included a length stop.

產品描述

D-way machinery has the right to change the product specifications or description. Before ordering the machine, please ask the relevant service personnel.

Model	TC-10	TC-12
Diameter Saw Blade	10” (250mm)	12” (305mm)
Max. depth of cut at degree 90	3” (76mm)	4” (101.6mm)
Max. depth of cut at degree 45	2” (50.8mm)	2-3/4” (70mm)
Arbor diameter	5/8" (1”, 30mm Optional)	5/8" (1”, 30mm Optional)
Arbor speed	4200rpm	4000rpm
Table size	915mmx685mm	1220mmx762mm
Table height	857mm	857mm
Sliding table capacity	4’x 8’ (1220mmx2440mm)	4’x 8’ (1220mmx2440mm)
Max. rip to right of blade	50” (1270mm)	50” (1270mm)
Motor	3HP	3HP (5HP Optional)
Net weight	407lbs (185kgs)	572lbs (260kgs)
Gross weight	497lbs (225kgs)	704lbs (320kgs)
Packing size	29” x 36” x42”	32” x 36” x42”
