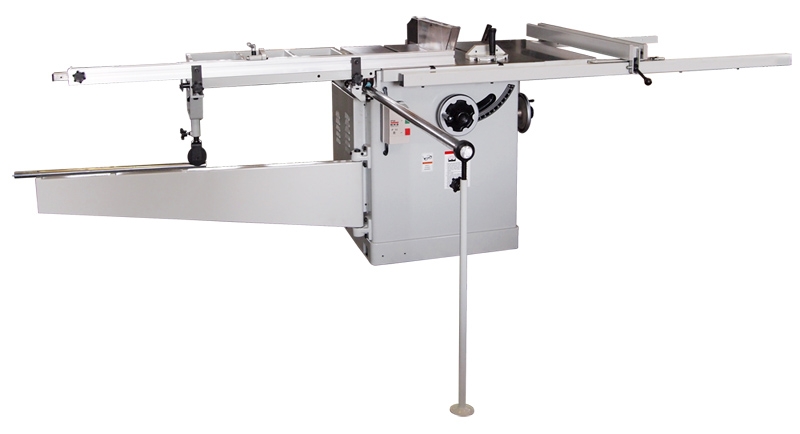

TC-14 (14”)

Heavy duty cast iron table is precision ground for accuracy.

-Heavy duty 5HP TEFC motor for standard, also can upgrade to 7.5HP for optional.

-High range cutting ability of heavy duty table saw.

-Overload protected magnetic switch.

-Anti-kickback safety guard.

-Ruggedly constructed machine frame provides maximum stability

-Choice of 4’ x 8’ Sliding table (optional)

-The machine can perform different sizes of groove and slot cuts when fitted with certain tools.

-Dado and Dado insert (optional)

-Equipped with precision fence for high accuracy cuts.

-Extras long guide rail

Trade Description

產品特色

SPECIALLY DESIGNED SLIDING TABLE（Optional）
FOR TC-10. 12. 14. 16.
•	Sliding table rides on two ball bearings and V roller which is guided by a precision grind steel bar for smooth travel.
•	Hold down clamp & Miter fence system is optional attachment for your request.
•	Cross cut fence has a built in scale to use in conjunction with the stops provided for panel sizing also included a length stop.

產品描述

D-WAY MACHINERY has the right to change the product specifications or description. Before ordering the machine, please ask the relevant service personnel.

Model	TC-14	TC-16
Diameter Saw Blade	14” (250mm)	16” (305mm)
Max. depth of cut at degree 90	5” (125mm)	5-1/2” (140mm)
Max. depth of cut at degree 45	3-1/2” (88mm)	3-7/8” (98mm)
Arbor diameter	5/8" (1”, 30mm Optional)	5/8" (1”, 30mm Optional)
Arbor speed	3750rpm	3750rpm
Table size	1220mmx965mm	1220mmx965mm
Table height	857mm	857mm
Sliding table capacity	4’x 8’ (1220mmx2440mm)	4’x 8’ (1220mmx2440mm)
Max. rip to right of blade	50” (1270mm)	50” (1270mm)
Motor	5HP(7.5hp Optional)	7.5HP (10HP Optional)
Net weight	847lbs (385kgs)	869lbs (395kgs)
Gross weight	1012lbs (460kgs)	1034lbs (470kgs)
Packing size	37” x 44” x42”	37” x 44” x42”
